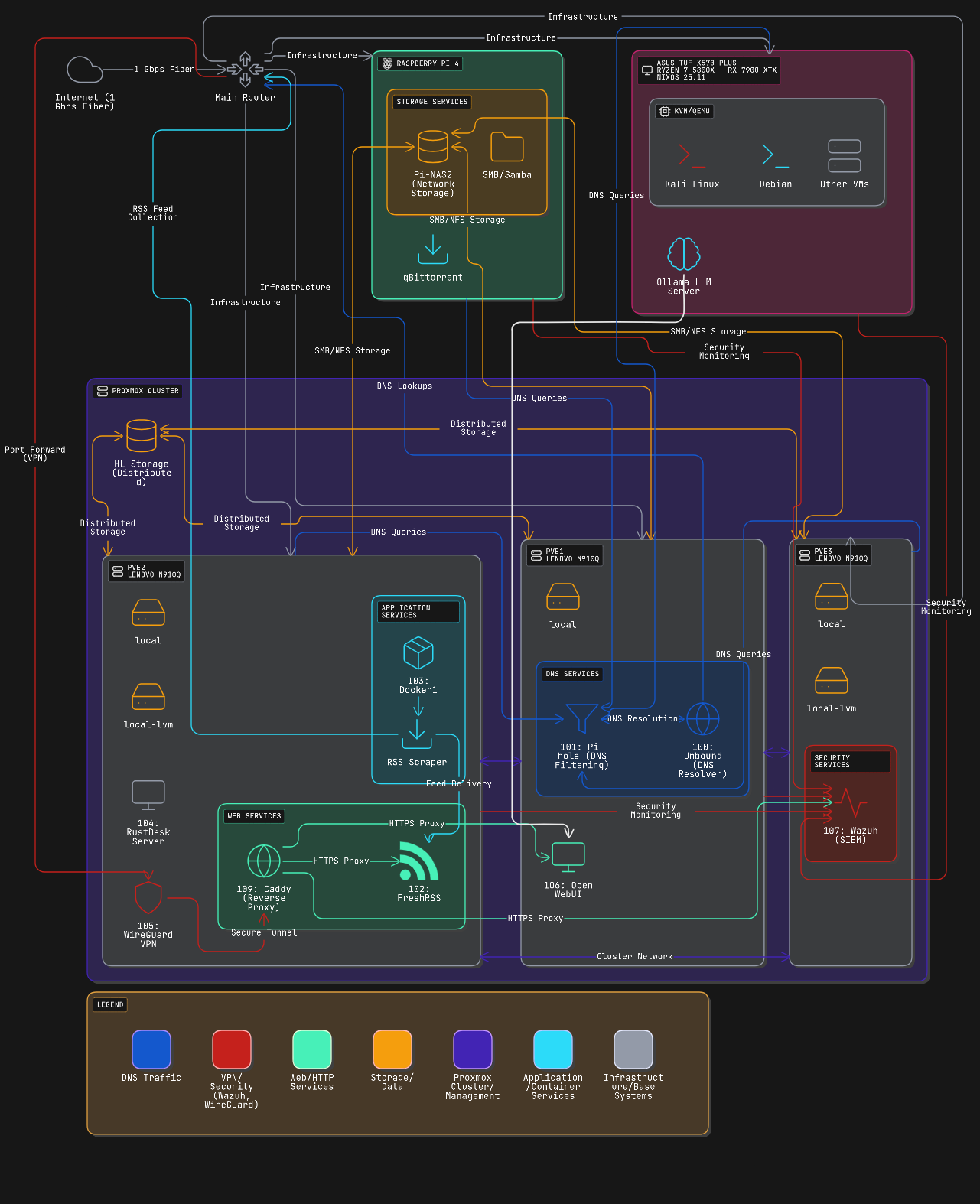

This diagram is crap – but it’ll give you some idea of my my lab. Once I’m done fiddling with the Home Lab, I’ll make some proper documentation and a diagram for the site.

Core features are Proxmon cluster running with a high availability storage so any node dies its virtual machine and container dies will automatically get spun up on one of the other nodes. As well as a NIXOS workstation with 64 gigs of RAM to provide on-demand virtualization.

Lab is accessible via a private VPN from anywhere. All my devices have a split VPN for accessing this local subnet so all of these machines appear local all the time no matter where I am in the world.
